LinearLayout 은 하단과 같이 view 를 수평 혹은 수직으로 배치한다.
How to
◼ LinearLayout in XML
LinearLayout.LayoutParams
View group 이 view 를 배치할 때 따르는 규칙이다.
◼ ViewGroup.LayoutParams
View 의 크기를 설정한다.
- layout_width : view 너비
- layout_height : view 높이
◼ ViewGroup.MarginLayoutParams
View 주변의 여백을 설정한다.
XML 속성 | 의미 | 상세 그림 |
layout_margin | 해당 view 의 상, 하, 좌, 우 여백 설정 | |

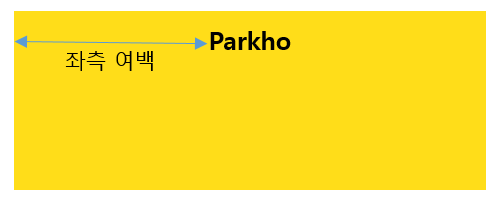

layout_marginLeft | 해당 view 의 좌측 여백 설정 | |
layout_marginTop | 해당 view 의 상단 여백 설정 | |
layout_marginRight | 해당 view 의 우측 여백 설정 | |

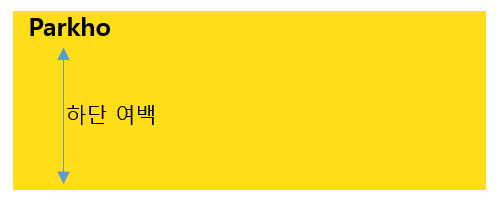

layout_marginBottom | 해당 view 의 하단 여백 설정 |
◼ LinearLayout.LayoutParams
1. View 의 수직 & 수평 정렬을 설정한다.
- layout_gravity : Orientation 에 설정한 방향에 영향이 없는 gravity 를 이용하여 view 를 배치한다.
(orientation 이 vertical 인 상태에서 layout_gravity 를 bottom 으로 설정하면 bottom 이 무시됨)
[수평 설정인 경우 (Orientation = horizontal)]
[수직 설정인 경우 (Orientation = vertical)]
2. View 의 크기를 가중치로 결정한다.
- layout_weight : 가로 or 세로에 정의된 값만큼 비율로 크기를 결정한다.
Attributes
◼ id
id 는 해당 LinearLayout 을 유일하게 식별할 수 있는 속성이다.
◼ orientation
View 배치를 가로 or 세로로 할지 설정할 수 있는 속성이다.
◼ gravity
Child view 들의 정렬 방식을 설정한다.
gravity = [left | right | center_horizontal | top | center_vertical | bottom | center | fill_horizontal | fill_vertical | fill | clip_horizontal | clip_vertical ] |
◼ layout_gravity
Orientation 에 설정한 방향에 영향이 없는 gravity 를 이용하여 view 를 배치한다.
(상세 설명은 위쪽의 LinearLayout.LayoutParams 를 참조하자)
◼ layout_weight
View 의 크기를 가중치로 결정한다.
(상세 설명은 위쪽의 LinearLayout.LayoutParams 를 참조하자)
◼ weightSum
layout_weight 을 이용할 때 전체 비율을 정확히 명시한다.
◼ baselineAligned & baselineAlignedChildIndex
baselineAligned 이 true 인 상태에서 baselineAlignedChildIndex 로 자식 view 의 index(0부터 시작) 를 지정하면 지정된 view 를 기준으로 나머지 view 들이 정렬된다.
